Product Features:
-
Suitable for low current and low voltage applications; low viscosity.
-
Free of organosilicone; will not cause electrical contact failure.
-
Arc-extinguishing, prevents sparks, reduces electromagnetic interference, ensures low contact resistance, and lowers temperature rise.
-
Contains copper anti-oxidants to effectively prevent oxidation of copper strips, formation of resistive films, and contact failure.
-
Non-carbonizing; special synthetic base oil provides good conductivity.
-
Enhances contact lubrication and reduces copper strip wear.
Storage Conditions:
-
Store in a cool, dry place, protected from direct sunlight and wind.
-
Do not mix with other greases; strictly avoid contamination with foreign substances.
Packaging Specifications:
-
6 KG/Carton, 1 KG/Can
Limited Warranty Information – Please Read Carefully:
The information provided here is accurate to the best of our knowledge. However, since the conditions and methods of use are beyond our control, this information cannot replace the customer’s own testing to ensure product safety, effectiveness, and suitability for a specific end-use. Any usage recommendations provided must not be construed as infringing on any patents. MSDS/SDS are available from the manufacturer upon request.
Applicable Products:
This product is suitable for reducing friction on copper contacts in encoders, switches, and similar devices.

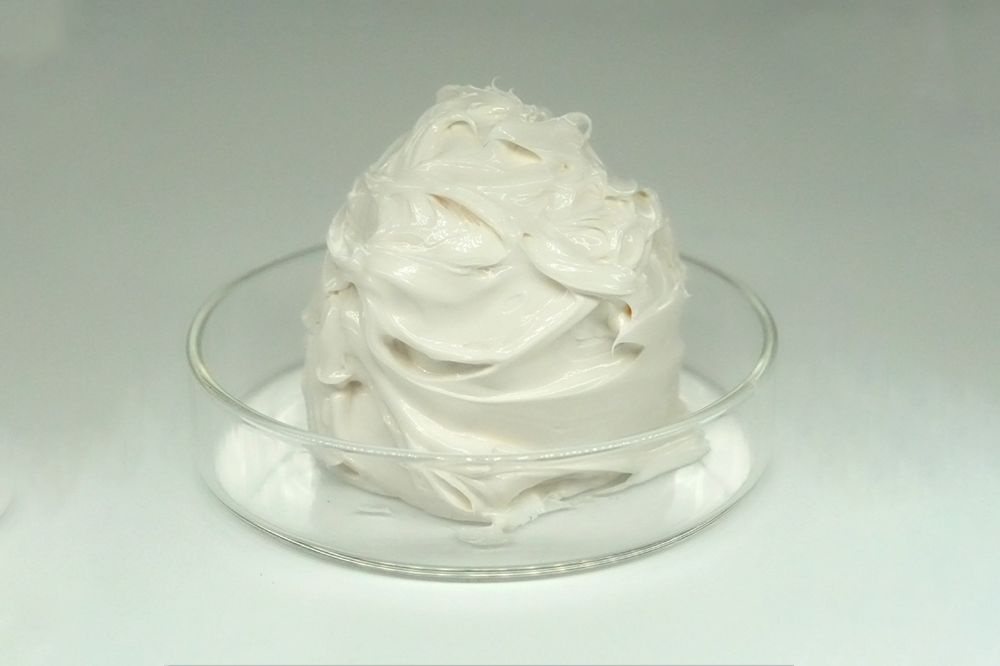

Technical Parameters of Switch Grease EC1：
|
Test Item |
Measured Value |
Test Method / Standard |
|
Base Oil |
Synthetic Ester |
— |
|
Thickener |
Lithium Soap |
— |
|
Appearance |
Light yellow, uniform grease |
— |
|
Consistency Grade |
0 |
NLGI |
|
Penetration (0.1 mm) |
355–385 |
GB/T 269-91 |
|
Operating Temperature (℃) |
-40 ~ 150 |
— |
|
Four-Ball Wear Scar (mm) |
0.83 |
SH/T 0204-92 |
|
Copper Corrosion |
1a |
GB/T 5096-85 |
|
Evaporation Loss (wt%) |
< 0.36 |
GB/T 7325-87 |
|
Oil Separation by Steel Mesh (wt%) |
< 20.75 |
SH/T 0324-2010 |
|
Environmental Certification |
RoHS, REACH, Halogen, 19P, EN71 |
— |
|
Shelf Life (years) |
6 |
— |
